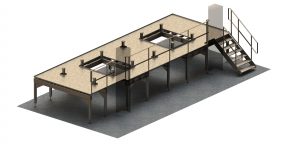

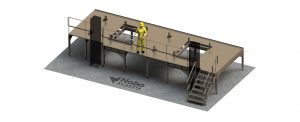

Design and detailed documentation for project of platforms

For clinet from food industry the design with documentation of platforms were done.

Design and detailed documentation for project of platforms

Scope of work:

  • basic engineering
  • analysis with respect to loads (machines)

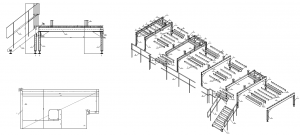

  • detailed engineering documentation (CAD)
  • desing made of stainless steel with approx. 4 t weight
